Servo Box
DR1000 Pro Servo Box

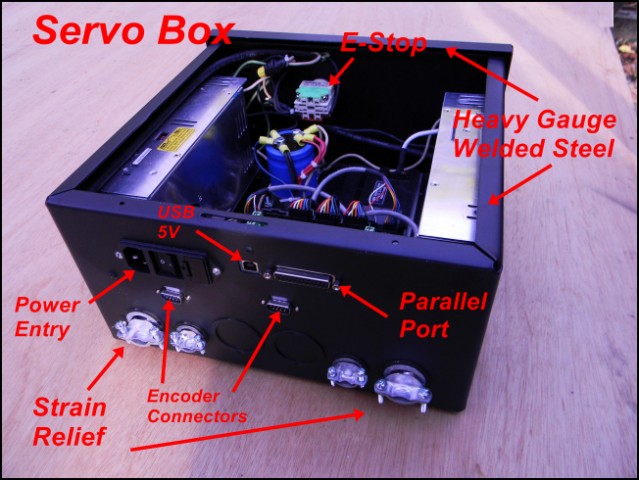

The Digirout 1000 Servo Control box provides reliable motion control of the Servo motors. The picture above shows the kit. A standard 16 gaugesteel  welded box is punched for the db25 parallel port input, component mounting, and fan inlet & exhaust holes. The component kit comprises three 20a 48vdc Servo drives, dual switching power supplies & smoothing capacitor, optically isolated breakout board with signal amplifiers and mounting plate, and high cfm AC fan & guard, and emergentcy E-stop.

Specs for the servo control box  are:

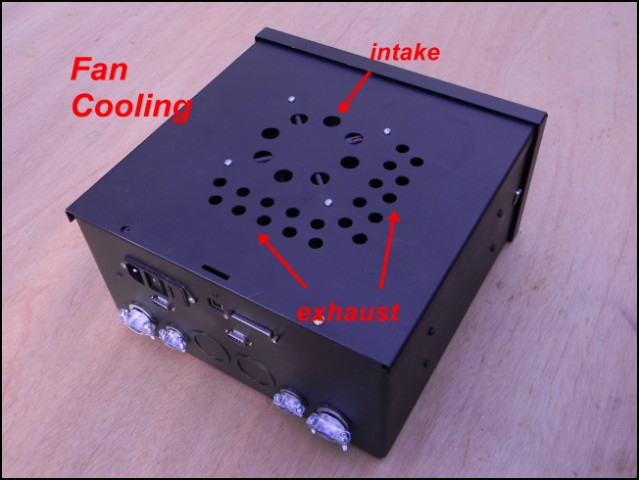

Servo Front

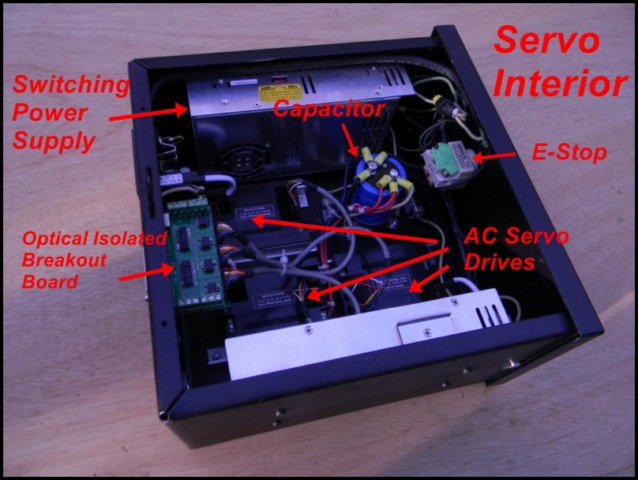

Servo Inside

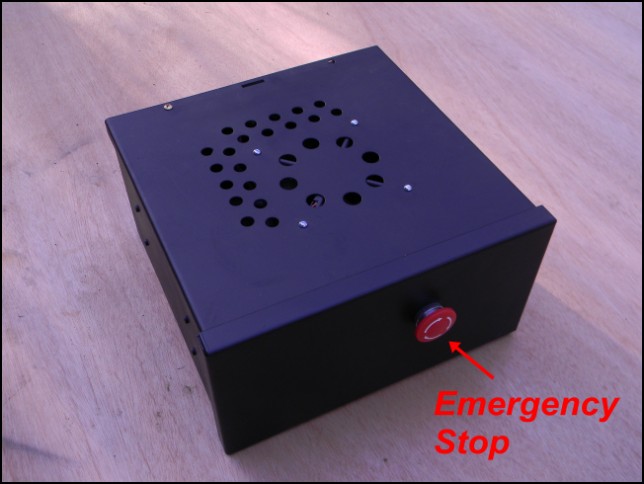

Serrvo Front
