Precision Extruded Dual Guideway

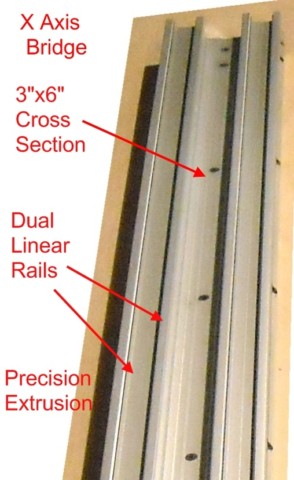

The Channel shaped precision extruded bridge provides the guidance for the DigiRout 200's X axis and is also used on the Z axis. Dual steel hardened linear rails are fitted to the structural alloy aluminum extrusion. Dual 7/16" Square Nut T-slot features on the back allows for mounting the bridge to the uprights & also attaching mounting brackets for the wiring cable carrier. On the Z axis these t-slots are used to mount the router bracket.    Back
